Rectifier with Link Choke and Soft Start Assembly

Rectifier with Link Choke

Overview

Rectifier with Link Choke and Soft Start Assembly. Reduces installation expense and complexity. Designed for simplifying installations of all the components necessary for generators with inverters integral to the PlasmaBlock®. Soft start feature to prevent startup current surges from weakening circuit breakers. 5 KW (16 Amp DC @ 208 – 240 VAC) rating.

Designed for simplifying installations of all the components necessary for:

  • Generators with inverters integral to the PlasmaBlock®
  • QuadBlock® generators requiring DC power
  • Soft start feature to prevent startup current surges from weakening circuit breakers
  • Power factor correction to 0.95 for accurate current measurements
  • Three phase 208 – 240 VAC rectification for single phase high frequency output
  • 5 KW (16 Amp DC @ 208 – 240 VAC) rating
  • Single phase version to 2.5 KW (7 Amp) available
  • Additional DC filtering extends component life
  • Photos
  • Manuals

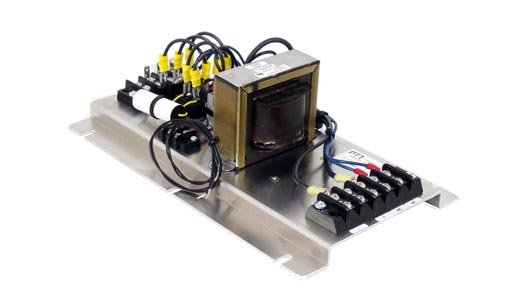

  • Front Left
  • Front Right
  • Rear Left
  • Rear Right
  • Installation Operation

Product Details

Benefits

  • Reduces OEM inventory
  • Reduces expense of installing many components to achieve the same results
  • Tested assembly reduces installation mistakes
  • Completes package required for ozone generators
  • Reduces inverter mains current by about 50%
  • Extends inverter component life

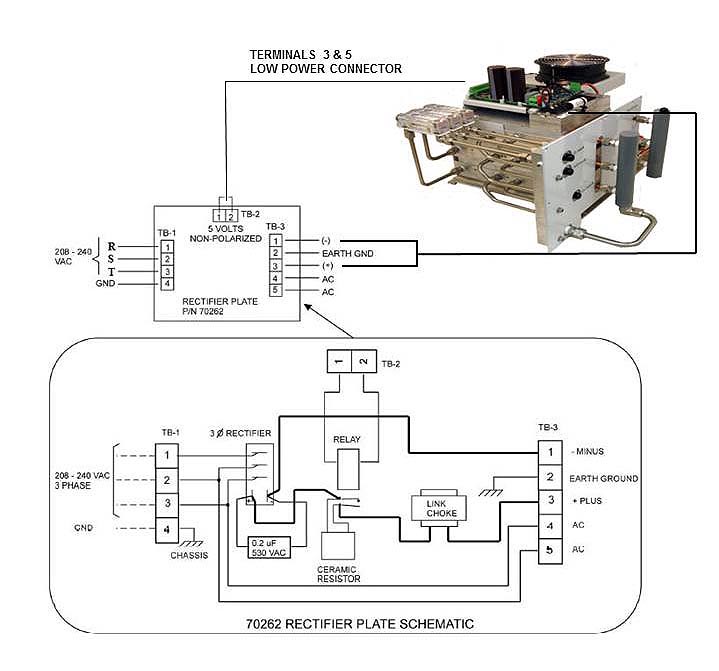

Schematic and Connections
