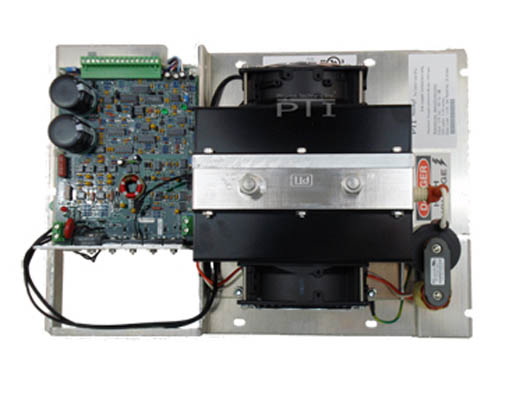

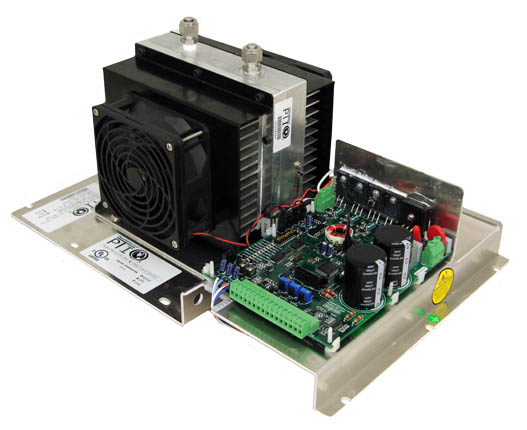

PlasmaBlock® Air Cooled

60g @ 5%<br/>56g @ 10%<br/>PlasmaBlock® Air Cooled

Product Summary

A staple in the Plasma Block mid size product line. Same internal block as the 30g, mounted vertically with additional cooling for greater capacity. Also available in a dual-cool version and a Gen2 block. 23 kHz operating frequency for silent operation. Line voltage 120v or 240v, 50/60hz.

Product Details

For added application information, see the PlasmaBlock® Application Guide manual.

Models Available

Refer to - Configuration Options Summary Sheet

Silent, Rugged, Reliable, Cost-effective, Compact and Light Weight, Ceramic, Air-cooled and power-Efficient.
1.3 lbs/day at 7.7% and 3 LPM : 3.6 lbs/day at 4.2% weight and 15 LPM (Oxygen or Concentrator).
No exposed high-voltage safety hazards.
Precise ozone control using Pulse Density Modulation (PDM) via potentiometer, 4/20ma or 0-10vdc.
Precise Control with Turn-down to 1%.
Useful pressure range: 5 – 100 psi.
Now available with PlasmaVIEW® software (optional).

Design Features

All high voltage is safely contained completely within the Plasma Blo3ck®; thereby eliminating shock hazards and dirt buildup which can cause dangerous flashover. High-voltage wiring is booted and all metal grounded.
Advanced design eliminates the possibility of ozone leakage from the body or fittings. The only ozone leak possible is at the customer tightened ozone fitting. All non-metal materials are ozone rated.
Military grade conformal coating eliminates problems associated with condensation and mold as well as greatly retarding damage caused by accidental ozone exposure.
Directly installable by UL 508a panel house.
Micro Channel® design results in high concentration, reduced high-voltage levels and more efficient operation. Requires concentrator or bottle feed of at least -60°F dew point, filtered, positive pressure oxygen. Materials in the gap are: ceramic and aluminum..
Ideal for ‘over the road’ .applications. Instant ON ozone production – no warm up time.
Precision machined aluminum block eliminates inefficient hot spots and facilitates operation at high pressures, as well as vacuum ride through. Only 1 psi drop with 10 LPM. Flow. As with any cell, the most predictable performance occurs in the positive pressure domain.. Maximum pressure 86 psi. , certifie by UL at 5X rating.
Ozone level automatically controlled to ± 1% from 85 to 130vac; or 170v to 260vac depending on model.
Pre-mounted, seasoned and tested package sub-system, which includes cell, transformer, inverter and fan. Design uses the finest quality material and machining for maximum performance and efficiency.
The Inverter is a reduced power version of PTI’s popular SSD110. All control and interface features of the SSD110 are available in this product.
23 kHz operating frequency for silent operation.
Line voltage 120v or 240v, 50/60hz.
Inlet 3/8", Outlet 3/8” both Stainless Compression are standard; 1/4” or 1/4” NPT on request.
Pre-seasoned, calibrated and pre-adjusted to customers’ individual performance needs. Ready to install. Rigorous 100% performance as well as burn-in tests of all electricals, are conducted to ensure the highest level of product quality, reliability and consistency.
There is an inherent pressure drop associated with each Plasma Block. This can vary depending on the desired flow. Verification of the outlet pressure, at the desired flow, of the Plasma Block is crucial in order to prevent a negative pressure drop in the Plasma Block. This will damage the Plasma Block internals and is not a warrantied repair.

Configuration options

PTI will set up and tune units to the customers desired specifications.

Oxygen pressure - (5 - 86 psi) (UL 5x rated)
Oxygen flow liters/minute - ( .1 - 20 Lpm) or equivalent SCFH
Heat load btu/hr = 1700
Inlet fittings (none, 1/4", 3/8", 8mm, 10mm, other)
Outlet fittings (none, 1/4", 3/8", 8mm, 10mm, other)
Weight Lbs (Kg) : 22.45 (10.19)
