35-150 watt low frequency transformers for severe application environments

35-150 watt low frequency transformers for severe application environments

Product Summary

Transformers designed specifically for harsh electrical and environmental demands. These transformers are NOT oil filled. Complex impregnation and premium materials surround the critical components, ensuring a virtual corona-free operating environment within the enclosure, and a long service life that rivals oil. Cost-effective, compact, and high generation efficiency design.

Product Details

 Now conforms to European Union requirements.

  • Designed specifically for harsh electrical and environmental demands imposed by continuous-duty, corona-discharge, ozone-generation, and electrostatic applications.  UL and CSA  Recognized Component. CE rating on the 220v line of products.
  • Completely sealed for Maximum Life, and Resistance to harsh environments, the design features assure a significant increase in operational performance where standard ignition and neon transformers routinely fail.
  • Cost-effective, compact and high generation-efficient design, typically capable of supporting twice the ozone generation load of a conventional transformer.
  • Vacuum impregnation-sealed for long service life in severe service applications such as corona-discharge, ozone-generation, electrostatics, and static bars.  2-year limited warranty for all applications including corona-discharge ozone generation.


Design Features

  • Complex impregnation and premium materials surround the critical components, ensuring a virtual corona-free operating environment within the enclosure, and a long service life that rivals oil.
  • This short-circuit-proof, current-limiting transformer is designed to withstand continuous operation in the most demanding of electrical and temperature environs.
  • All copper windings, a rugged high-temperature and high-voltage insulation system, housed in a very compact, vacuum- sealed enclosure, ensure operation at 65°C.
  • Separate ground wire ensures proper grounding to the generator and enclosure.
  • Standard KV configurations are end point ground 4, 5, 6.5, 7.1, 8.5, 10, 11.4 units in power ranges from 35 to 150 watts.  Standard designs are 120v/60hz & 220v/50:60hz.  Consult the factory for custom configurations.
  • All mounting brackets are Stainless Steel.
  • Premium high-voltage wire for  Maximum Life.
  • Custom terminations and wire lengths upon request.
  • Highly qualified technical support with a thorough understanding of ozone applications.

Performance Information

Item Cat #

Primary

Volts/Hz

Max

Pri

VA

Typical

Loaded

Watts

Open

Sec

KvRMS

Short

Sec

MA

Style

Case

Size

Weight

Lbs(Kg)

1 12-103.510 120/60 52 40 3.5 10 End Gnd 12 4.2(1.9)
2 12-104.216 120/60 96 40 4 16 End Gnd 12 4.2(1.9)
3 12-204.216 230/50-60 96 40 4 16 End Gnd 12 4.2(1.9)
4 12-105.010 120/60 90 40 5 10 End Gnd 12 4.2(1.9)
5 12-205.010 230/50 90 40 5 10 End Gnd 12 4.2(1.9)
6 12-106.510 120/50-60 115 35 6.5 10 End Gnd 12 4.2(1.9)
7 12-206.510 220/50-60 115 35 6.5 10 End Gnd 12 4.2(1.9)
8 15-108.527 115/50-60 280 150 8.5 27 End Gnd 15 9.0(4.0)
9 15-304.256  115/230/50-60  280  150  4.2  56  End Gnd  15  9.0(4.0)
10 15-307.130 120/240/50-60  230  150  7.1  30   End Gnd 15   9.0(4.0)
11 15-308.527 120/240/50-60  260  150  8.5  27   End Gnd 15   9.0(4.0)
12 15-310.030 120/240:50-60  260  150  10  30   End Gnd 15   9.0(4.0)
13 15-311.420 120/240/50-60  230  150  11.4  20   End Gnd 15   9.0(4.0)

All above: specials and wire configuration available upon request.

Related Manuals

(pdf format, view or download)

Installation Operation

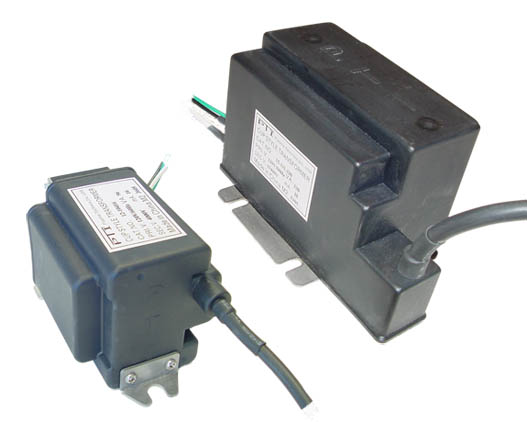

Product Photos

Installation Drawings

series 12
series 12
series 15
series 15
schematic
schematic
